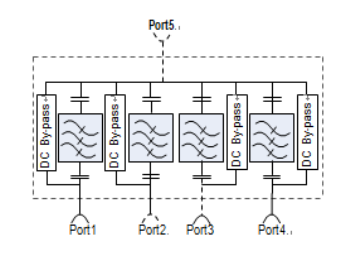

Quadplexer

Items

Values

Frequency

380-960 MHz

1710-1880 MHz

1920-2170 MHz

2300-2700 MHz

Insert Loss

≤0.3 dB

≤0.4 dB

≤0.4 dB

≤0.4 dB

Isolation

≥50 dB

IMD3

≤-160 dBc @ +43 dBm × 2

DC Pass Current

Max 2500 mA (Between All Ports)

VSWR

≤1.22

Impedance

50 Ω

Power Capacity

300 W

RF Connection

DIN-F

Temperature Range

-40- +60 °C

Humidity

0% to 95%

MTBF Hours

≥500,000

Lightning Protection

3 kA; 10 / 350 μS Pulse

Protection

IP67

Size

Single unit: 238 × 200 × 52 mm

Double unit: 238 × 200 × 106 mm

(Without connector)

Weight

Single unit: 4kg

Double unit: 8.4 kg
