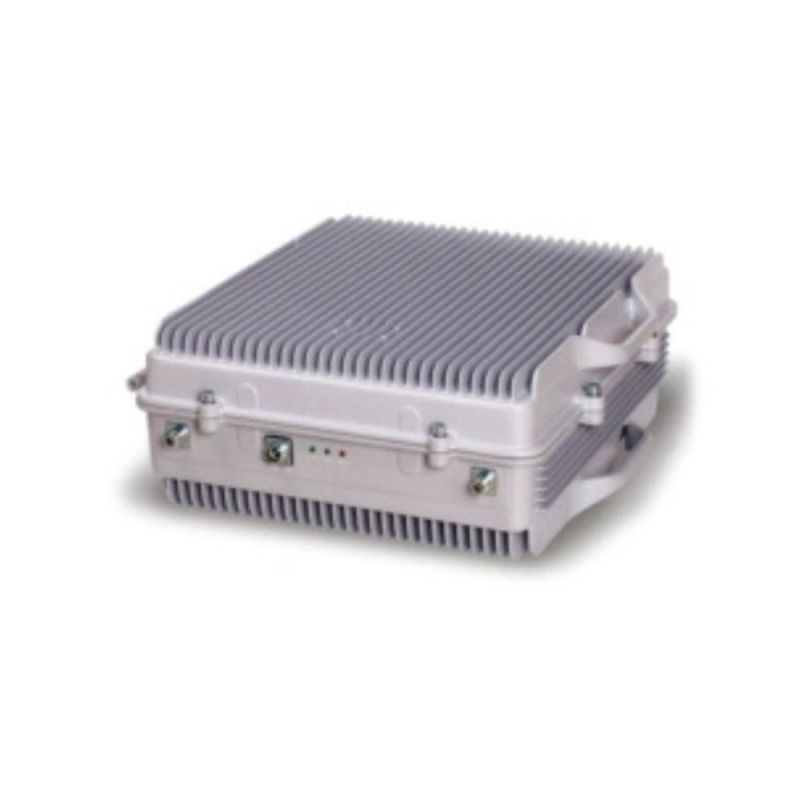

Outdoor Repeaters

ELECTRICAL

Model

CR-EPOA0895-20W-V24

850 MHz           UL: 824-849 MHz           DL: 869-894 MHz

CR-EPOA1995-20W-V24

1900MHz           UL: 1850-1910 MHz         DL: 1930-1990 MHz

CR-EPOA2195-20W-V24

AWS2100            UL: 1710-1780MHz            DL:2500-2570MHz

CR-EPOA2696-20W-V24

2600MHz            UL: 2500-2570 MHz         DL: 2600-2690 MHz

Output power

DL

43dBm±1.5dBm

UL

33dBm±1.5dBm

Max Input power

13 dBm

Gain

95 ± 3 dB

Gain Adjust Range

≥30 dB; 1 dB/step

AGC Range

30 dB

IMD3

≤ -45dBc

Out of band rejection

≤ -10 dBc @ ± 2.5 MHz

≤ -60 dBc @ ± 10 MHz

Noise Figure

≤ 6 dB

Ripple in Band

≤ 6 Db

Time Delay

≤ 5 μs

Spurious Emission

9 kHz – 1 GHz

≤ -36 dBm @ 30 kHz

1 GHz – 12.75 GHz

≤ -30 dBm @ 100 kHz

VSWR

≤ 1.5

Port Impedance

50 Ω

Monitoring Functions

Remote Monitor: GSM Modem (Via SMS)

Function: (1) Input /Output Power detection;(2) Equipment temperature detection;

(3)VSWR detection;(4) DL/UL gain adjustment；(5) Over input/output power alarm；

(6) Low output power alarm;

 POWER, MECHANICAL & ENVIRONMENTAL

Weight

≤15 kg

Dimension

428 × 328 × 175mm

RF Connector

N-F

Power Supply

AC: 110-240 V ;

Power Consumption

≤ 180 W

Temperature

-25~+55℃

Environmental Class

IP65

MTBF

≥ 50,000 hour
