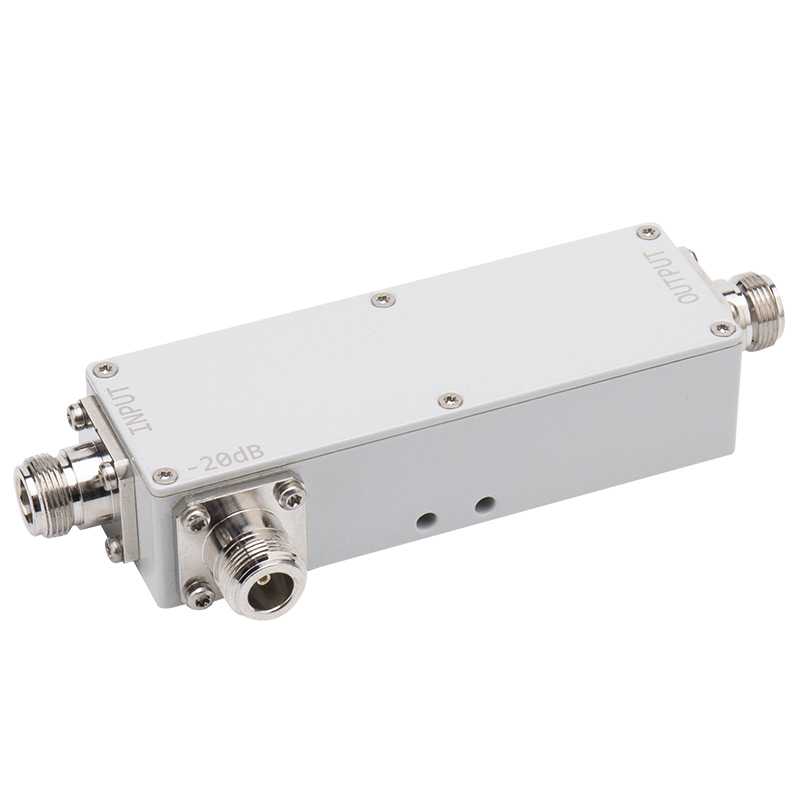

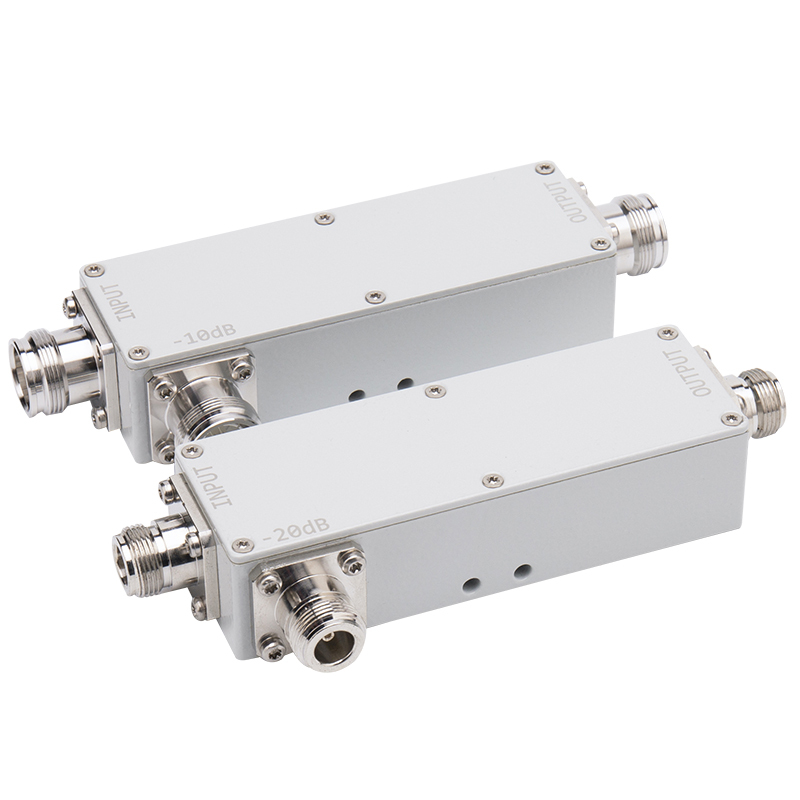

Coupler 340-3800MHz

5-30dB, N Type, PIM160
SKU:
Highlights
  • Integrated cavity design, guaranteeing superior performance and reliability.
  • Full band up to 3.8GHz, covering 5G systems.
  • Lower PIM, -160dBc @ 20w, tested on each port and each frequency band.
  • Customized products are available.
  • IP67 protection ensures stable performance in any environment.
0.0 (0 Reviews)
0 Sold
$0.00 $28.00
GET 10% OFF ON ORDERS OVER $3,000.00
Get it
10OFF
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $50.00 OFF ON ORDERS OVER $1,000.00
  • GET $120.00 OFF ON ORDERS OVER $2,000.00
  • GET $200.00 OFF ON ORDERS OVER $3,000.00
  • GET $500.00 OFF ON ORDERS OVER $5,000.00
  • GET $2,500.00 OFF ON ORDERS OVER $10,000.00
    Please select the information you want X
  • Coupling Value:
    5dB
    6dB
    8dB
    10dB
    13dB
    15dB
    20dB
    30dB
Quantity
-
+
0 in stock
  • Coupler
  • Coupler
  • Coupler
  • Coupler
1/1
  • Coupler
  • Coupler
  • Description
340-3800MHz COUPLER (N TYPE) TECHNICAL SPECIFICATION

Models

CR-PC0338H-05-16N

CR-PC0338H-06-16N

CR-PC0338H-08-16N

CR-PC0338H-10-16N

CR-PC0338H-13-16N

CR-PC0338H-15-16N

CR-PC0338H-20-16N

CR-PC0338H-30-16N

Frequency

340-3800 MHz

Coupling Value

5 dB

6 dB

8 dB

10 dB

13dB

15 dB

20 dB

30B

Coupling error

± 1 dB

Insertion Loss

≤2.1 dB

≤1.7 dB

≤1.4 dB

≤1.1 dB

≤0.7 dB

≤0.4 dB

≤0.35 dB

≤0.2 dB

Directivity

≥20 dB

PIM

≤-160 dBc @+43 dBm × 2

Ripple

in Band

≤ ±0.8 dB

≤ ±1 dB

VSWR

≤1.3

Impedance

50 Ω

Power capacity

300 W

RF connection

N-F

Protection

IP67

Temperature Range

-30- +70 °C

Size

140*44.5*29.5mm

Weight

0.85 kg
